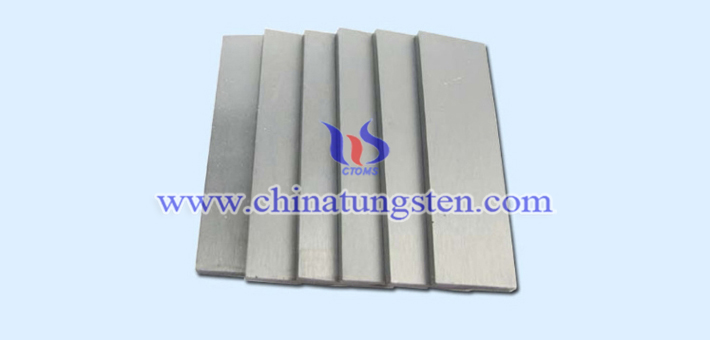

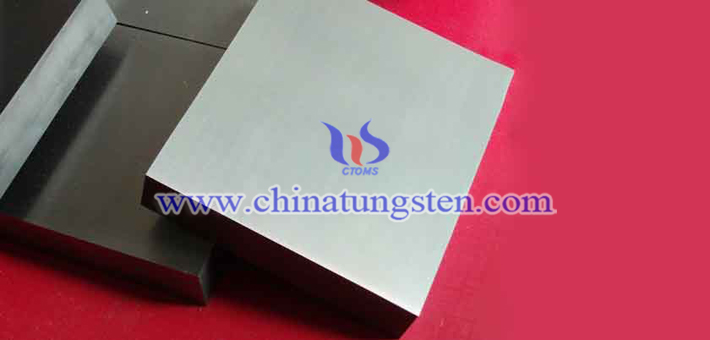

ASTM B777-15 class1 tungsten alloy plate has high thermal and electrical conductivity, high melting point, resistant to breakage. It can be used to make tungsten channels for electronics, lightening, electron-vacuum industries.
The properties of ASTM B777-15 class1 tungsten alloy plate are:
Matrix: 90% W
Density: 16.85~17.30g/cc
Hardness Rockwell Max: 32HRC
Standard Alloy
Ultimate Tensile Strength: 110 KSI and758 MPa
Yield Strength (0.2% offset): 75 KSI and 517 MPa
Elongation: 5%
Nonmagnetic Alloy
Ultimate Tensile Strength: 94 KSI and 648 MPa
Yield Strength (0.2% offset): 75 KSI and 517 MPa
Elongation: 2%
