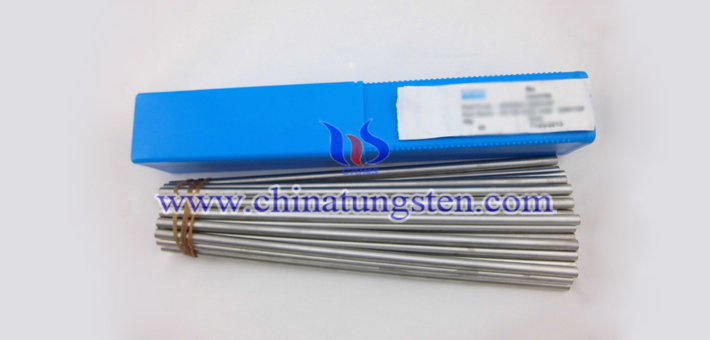

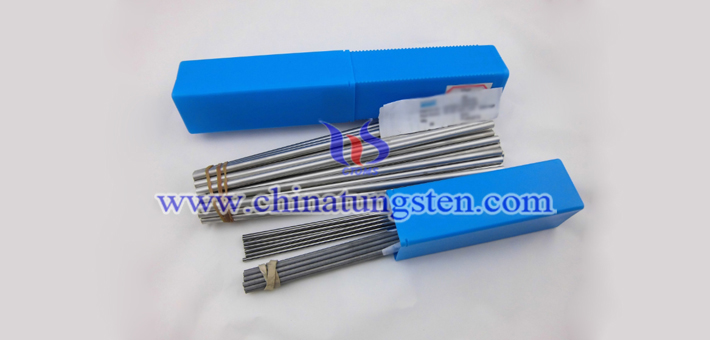

95W-3.6Ni-1.4Fe tungsten alloy tube has high melting point, high temperature mechanical properties, good corrosion resistance, good wear resistance and good fracture resistance. As a good high temperature material, it is mainly used for heating elements, liquid metal containers, thermocouple sleeve, fuse and thermoelectric emitter.
More product details, please visit:
http://www.tungsten-alloy.com/tungsten-alloy-tube.html
The properties of 95W-3.6Ni-1.4Fe tungsten alloy tube are:
Nominal W Content: 95 wt.%
Nominal Nickel Content: 3.6 wt.%
Nominal Iron Content: 1.4 wt.%
MIL-T-21014: Class 3
SAE-AMS-T-21014: Class 3
AMS 7725 B: NIL
ASTM B777-87: Class 3
Minimum Density: 17.75 g/cc
Typical Hardness: 29HRC
Modulus of Elasticity: 50x106 psi
Ultimate Tensile Strength Min.:120ksi
Yield Strength Min (0.2% offset): 80ksi
Minimum Elongation (1” Gauge Length): 6%
Magnetic Properties: Slightly Magnetic
