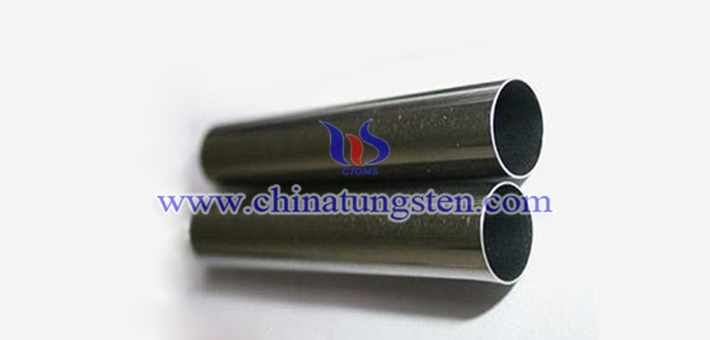

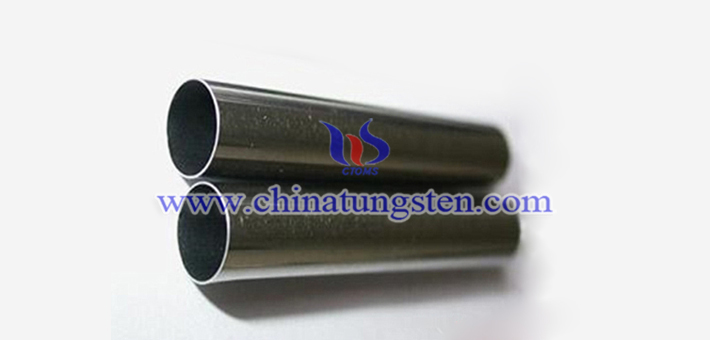

92.5W-5.4Ni-2.1Fe tungsten alloy tube has the advantages of high thermal conductivity, good wear resistance, low thermal expansion coefficient, good oxidation resistance to high temperature, good mechanical processing performance, etc. It has been widely used in many fields such as aerospace, military equipment, glass fiber, industrial ceramics, petrochemical.
More product details, please visit:
http://www.tungsten-alloy.com/tungsten-alloy-tube.html
The properties of 92.5W-5.4Ni-2.1Fe tungsten alloy tube are:
Nominal W Content: 92.5 wt.%
Nominal Nickel Content: 5.4 wt.%
Nominal Iron Content: 2.1 wt.%
MIL-T-21014: Class 2
SAE-AMS-T-21014: Class 2
AMS 7725 B: NIL
ASTM B777-87: Class 2
Minimum Density: 17.15 g/cc
Typical Hardness: 28HRC
Modulus of Elasticity: 48x106 psi
Ultimate Tensile Strength Min.:120ksi
Yield Strength Min (0.2% offset): 80ksi
Minimum Elongation (1” Gauge Length): 8%
Magnetic Properties: Slightly Magnetic
