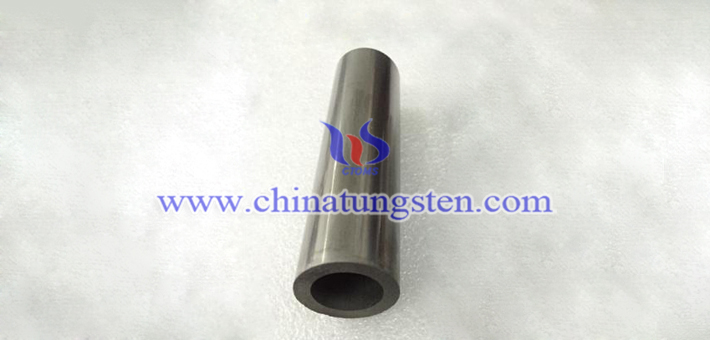

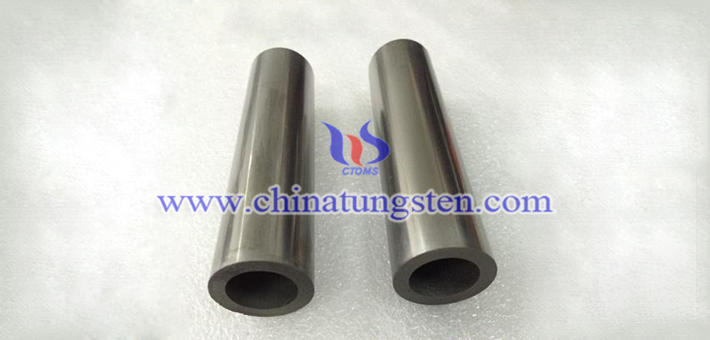

AMS 7725E class2 tungsten alloy tube has a series of excellent properties, such as high hardness, high strength, good abrasion resistance, good thermal conductivity and so on. In addition, it can also withstand high temperature, corrosion resistance. It can be used as protection sleeve of tungsten-rhenium thermocouple, grid plate of high-power electron tube, cathode support cylinder, sputtering target material, etc.
More product details, please visit:
http://www.tungsten-alloy.com/tungsten-alloy-tube.html
The properties of AMS 7725E class2 tungsten alloy tube are:
Matrix: 92.5% W
Density: 17.15~17.85g/cc
Hardness Rockwell Max: 33HRC
AMS 7725E: Class2 Type1
Ultimate Tensile Strength: 94 KSI and 648 MPa
Yield Strength (0.2% offset): 75 KSI and 517 MPa
Elongation: 2%
AMS 7725E: Class2 Type2
Ultimate Tensile Strength: 110 KSI and 758 MPa
Yield Strength (0.2% offset): 75 KSI and 517 MPa
Elongation: 5%
