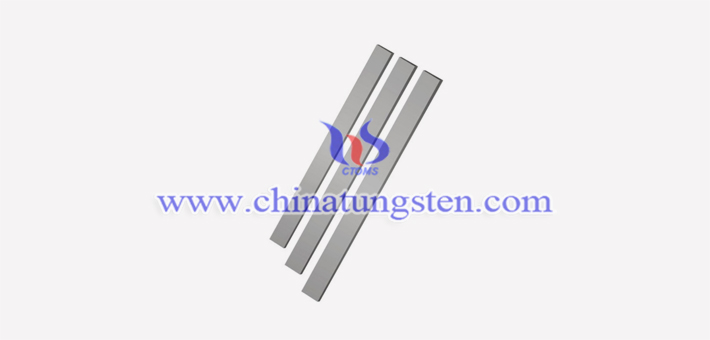

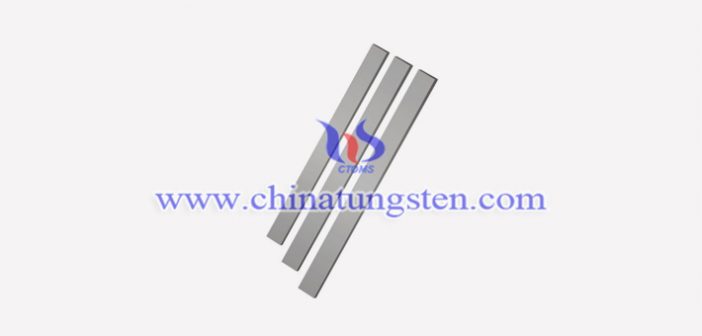

AMS 7725E class1 tungsten alloy bar has high thermal and electrical conductivity, high melting point, resistant to breakage. It can be made into tungsten electronic bars, tungsten insulation screen, tungsten boat, tungsten channels for electronics, tungsten heating materials and other products.
The properties of AMS 7725E class1 tungsten alloy bar are:
Matrix: 90% W
Density: 16.85~17.30g/cc
Hardness Rockwell Max: 32HRC
AMS 7725E: Class1 Type1
Ultimate Tensile Strength: 94 KSI and 648 MPa
Yield Strength (0.2% offset): 75 KSI and 517 MPa
Elongation: 2%
AMS 7725E: Class1 Type2
Ultimate Tensile Strength: 110 KSI and 758 MPa
Yield Strength (0.2% offset): 75 KSI and 517 MPa
Elongation: 5%
