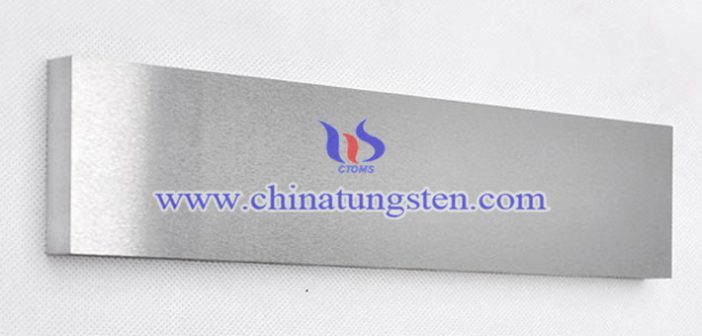

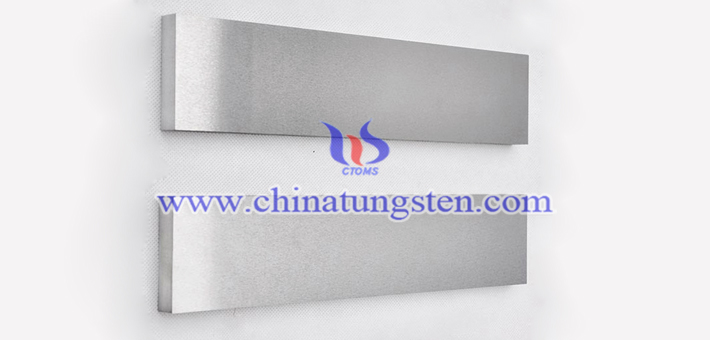

92.5W-5.4Ni-2.1Fe tungsten alloy plate has better machinability, excellent wear-resistance, high elastic modulus and compressive strength. It is widely used in electronics, lighting, medical equipment, and electric vacuum stove electrode.
The properties of 92.5W-5.4Ni-2.1Fe tungsten alloy plate are:
Nominal W Content: 92.5 wt.%
Nominal Nickel Content: 5.4 wt.%
Nominal Iron Content: 2.1 wt.%
MIL-T-21014: Class 2
SAE-AMS-T-21014: Class 2
AMS 7725 B: NIL
ASTM B777-87: Class 2
Minimum Density: 17.15 g/cc
Typical Hardness: 28HRC
Modulus of Elasticity: 48x106 psi
Ultimate Tensile Strength Min.:120ksi
Yield Strength Min (0.2% offset): 80ksi
Minimum Elongation (1” Gauge Length): 8%
Magnetic Properties: Slightly Magnetic
