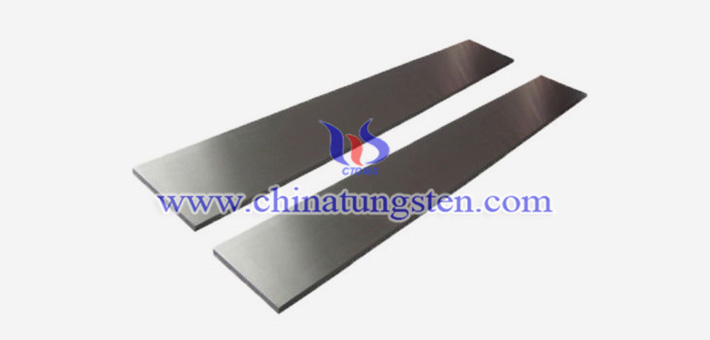

95W-3Ni-2Fe tungsten alloy plate has low thermal expansion, good thermal and electrical conductivity, excellent arc resistance, superior wear resistance and strength at elevated temperatures. It is a very good material to produce the parts to resist high temperature & corrosion, such as tungsten target, tungsten heat elements, tungsten radiation shields and tungsten channels.
The properties of 95W-3Ni-2Fe tungsten alloy plate are:
Alloy Type：W 95%、Ni 3%、Fe 2%
MIL-T-21014: Class 3
SAE-AMS-T-21014: Class 3
AMS 7725 C: NIL
ASTM B777-87: Class 3
Nominal Density: 17.75~18.35 g/cc
Nominal Density: 0.650 lbs/ in3
Hardness Rockwell: 28 C
Ultimate Tensile Strength Min: 105,000 psi
Yield Strength Min (0.2% offset): 75,000 psi
Magnetic Properties: Slightly Magnetic
