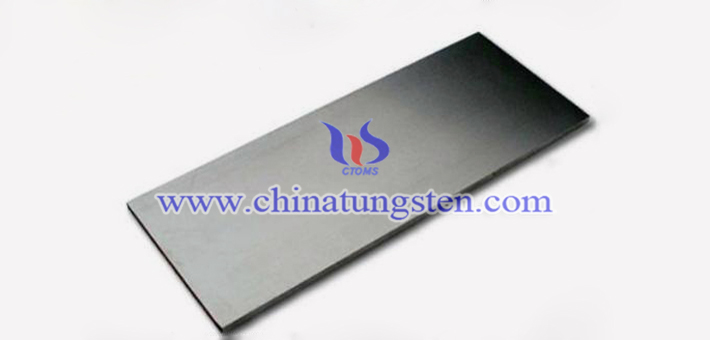

97W-2.1Ni-0.9Fe tungsten alloy plate good red hardness, high thermal and electrical conductivity, good thermal conductivity, and resistant to breakage. It is widely used in the elector-vacuum, lighting, and electronics industries.
The properties of 97W-2.1Ni-0.9Fe tungsten alloy plate are:
Alloy Type（%）：97W、2.1Ni、0.9Fe
MIL-T-21014: Class 4
SAE-AMS-T-21014: Class 4
AMS 7725 C: NIL
ASTM B777-87: Class 4
Density: 18.5 g/cc and 0.668 lbs/ in3
Hardness Rockwell: 28 C
Ultimate Tensile Strength Min: 123,000 ksi
Yield Strength Min (0.2% offset): 85,000 ksi
Elongation: 5 % in 1"
Proportional Elastic Limit: 45,000 psi
Modules of Elasticity: 53 x 106 psi
Coefficient of Thermal Expansion: 4.5 X 10-6/°C (20~400°C)
Thermal Conductivity: 0.3 CGS Units
Electrical Conductivity: 17 % IACS
Magnetic Properties: Slightly Magnetic
