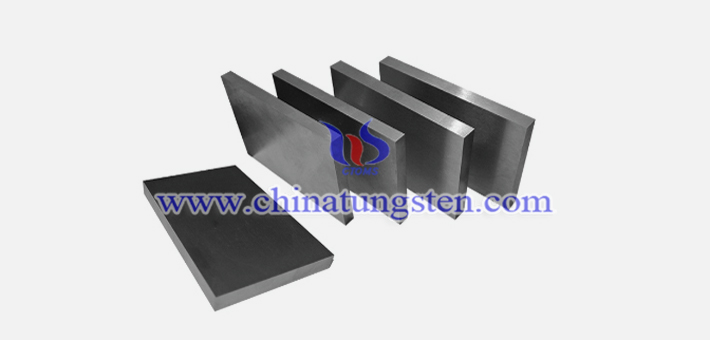

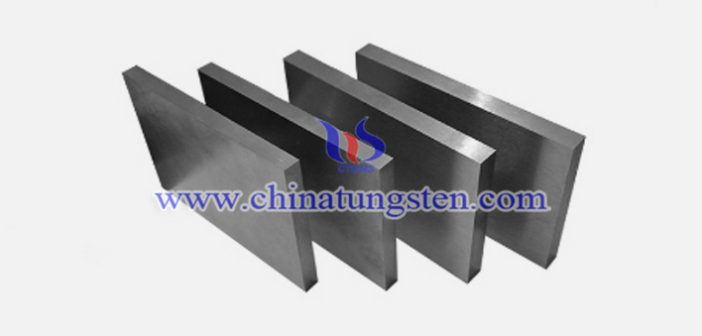

MS 7725E class2 tungsten alloy plate has good conductivity, thermal conductivity and corrosion resistance, and high absorption capacity for rays. It is applied in manufacturing of collimator for nuclear medicine, nuclear research, geological prospecting and security inspection.
The properties of AMS 7725E class2 tungsten alloy plate are:
Matrix: 92.5% W
Density: 17.15~17.85g/cc
Hardness Rockwell Max: 33HRC
AMS 7725E: Class2 Type1
Ultimate Tensile Strength: 94 KSI and 648 MPa
Yield Strength (0.2% offset): 75 KSI and 517 MPa
Elongation: 2%
AMS 7725E: Class2 Type2
Ultimate Tensile Strength: 110 KSI and 758 MPa
Yield Strength (0.2% offset): 75 KSI and 517 MPa
Elongation: 5%
