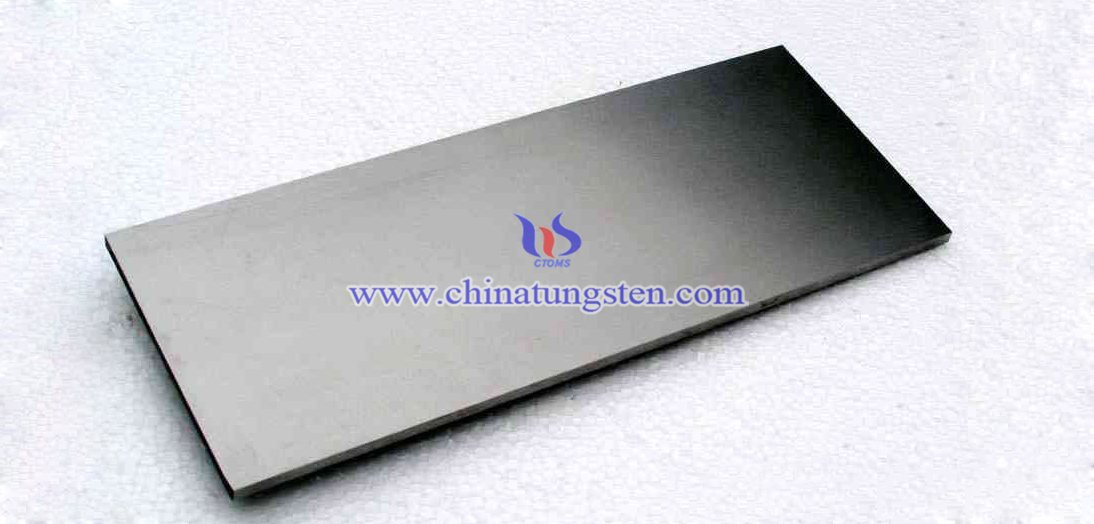

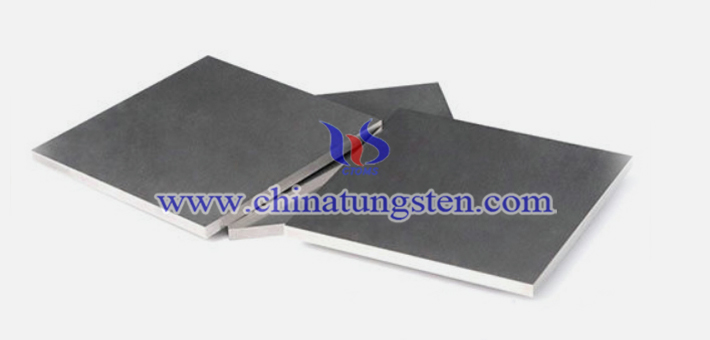

AMS 7725E class1 tungsten alloy plate has very good mechanical strength, small coefficient of thermal conductivity, large expansion coefficient and elastic coefficient. It can be used to make tungsten target, tungsten heat elements, tungsten channels for electronics, lightening, electron-vacuum industries.
The properties of AMS 7725E class1 tungsten alloy plate are:
Matrix: 90% W
Density: 16.85~17.30g/cc
Hardness Rockwell Max: 32HRC
AMS 7725E: Class1 Type1
Ultimate Tensile Strength: 94 KSI and 648 MPa
Yield Strength (0.2% offset): 75 KSI and 517 MPa
Elongation: 2%
AMS 7725E: Class1 Type2
Ultimate Tensile Strength: 110 KSI and 758 MPa
Yield Strength (0.2% offset): 75 KSI and 517 MPa
Elongation: 5%
