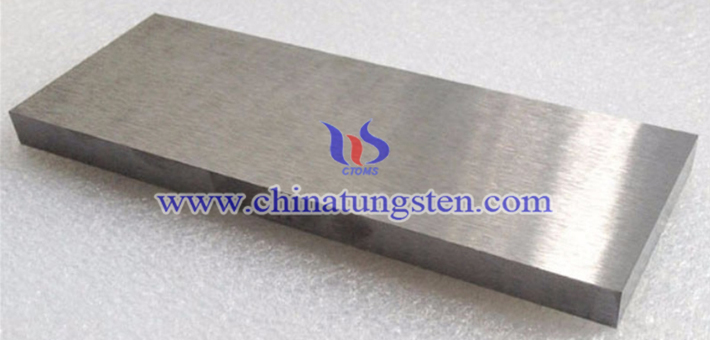

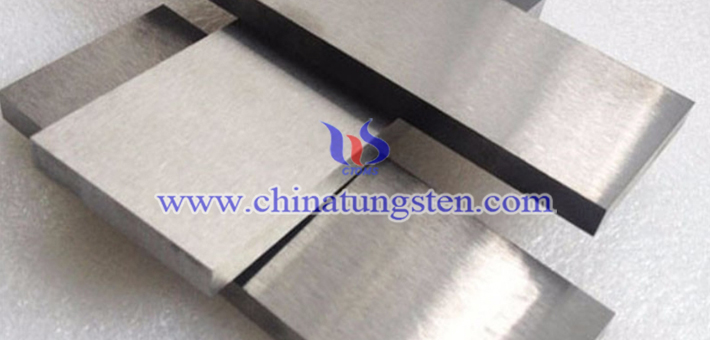

Anviloy 4200 tungsten alloy plate has the density in the range of 17 up to almost 19 g/cm3, high X-ray and gamma ray absorption capacity. It is the ideal material for collimators and shielding components in radiotherapy.
The properties of Anviloy 4200 tungsten alloy plate are:
Alloy Type：W 93%、Balance Ni、Fe、Mo
MIL-T-21014: NIL
SAE-AMS-T-21014: NIL
AMS 7725 C: NIL
ASTM B777-87: NIL
Density: 17.7 g/cc and 0.639lbs/ in3
Hardness Rockwell: 32 C
Ultimate Tensile Strength Min: 125,000ksi
Yield Strength Min (0.2% offset): 95,000ksi
Elongation: 4% in 1"
Proportional Elastic Limit: 60,000PSI
Modules of Elasticity: 53 x 106 PSI
Coefficient of Thermal Expansion: 4.5 X 10-6/°C (20~400°C)
Thermal Conductivity: 0.27 CGS Units
Electrical Conductivity: 14 % IACS
Magnetic Properties: Slightly Magnetic
