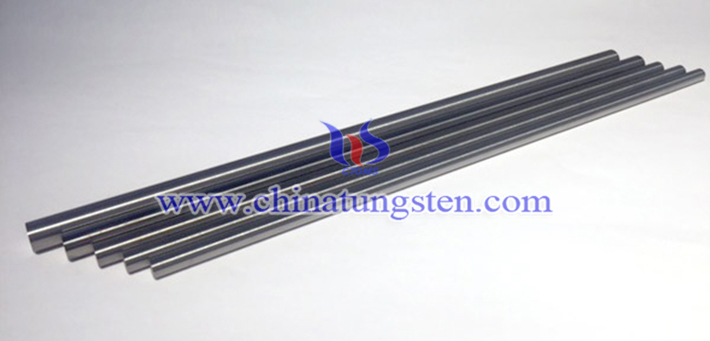

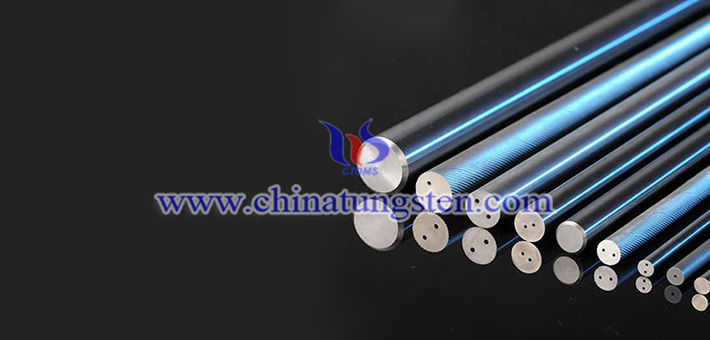

WNF-3515 tungsten alloy rod has excellent radiation resistance, thermal and electric conductivities, corrosion resistance and machinable. Chinatungsten Online is experienced in the use of tungsten alloy and a wide variety of tungsten alloy rods to manufacture precision components. Please review the properties of our standard of products along with information about their specific applications.
The properties of WNF-3515 tungsten alloy rod are:
Nominal W Content: 95 wt.%
Nominal Nickel Content: 3.6 wt.%
Nominal Iron Content: 1.4 wt.%
MIL-T-21014: Class 3
SAE-AMS-T-21014: Class 3
AMS 7725 B: NIL
ASTM B777-87: Class 3
Minimum Density: 17.75 g/cc
Typical Hardness: 29HRC
Modulus of Elasticity: 50x106 psi
Ultimate Tensile Strength Min.:120ksi
Yield Strength Min (0.2% offset): 80ksi
Minimum Elongation (1” Gauge Length): 6%
Magnetic Properties: Slightly Magnetic
