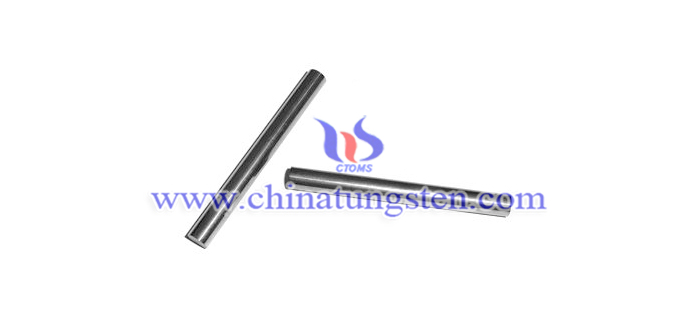

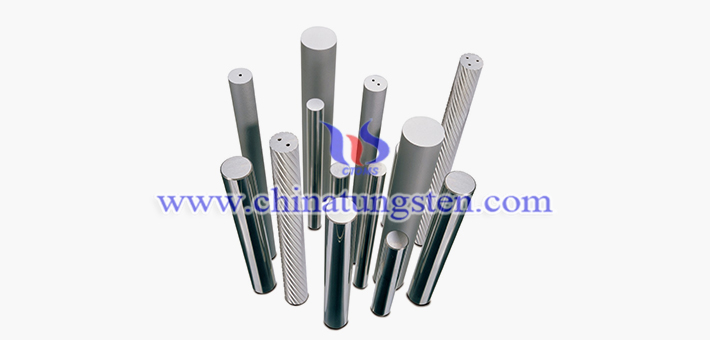

HPM1810 tungsten alloy rod has high density, which is the prime choice for adding balance weights, ballast or vibration damping mass where space is limited. It is reasonably corrosion resistant in both acid and alkaline environments and can easily be plated or painted if necessary. It is easy to clean, non-toxic and non-radioactive.
The properties of HPM1810 tungsten alloy rod are:
Tungsten content: 95.0%
Density: 18.0±0.2g/cm3
Hardness：≤332 HV10
Tensile Strength (typical value): 830MPa
Minimal Yield Strength (0.2% offset): 520MPa
Elongation (typical value): 14%
Young’s Modulus (average value): 370MPa
Median Coefficient of Thermal Expansion 20~100℃：5.2μm/(m?K)
Median Coefficient of Thermal Expansion 20~300℃：5.3μm/(m?K)
Median Coefficient of Thermal Expansion 20~450℃：5.5μm/(m?K)
Thermal Conductivity: ≥80 W/(m?K)
Electrical Conductivity (average value):13% IACS and 7.7 MS/m
Specific Electrical Resistance(average value): 0.14μΩ?m
Permeability: ＞1.05μ
