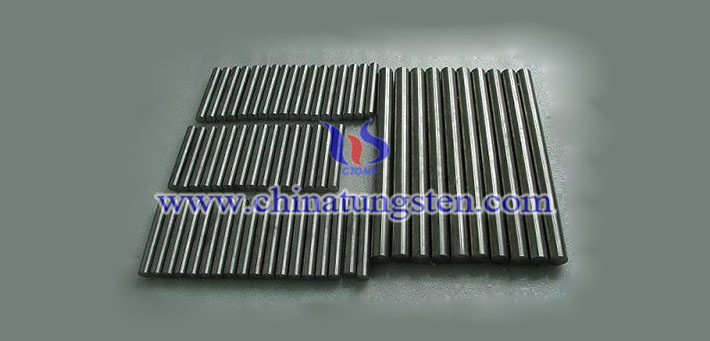

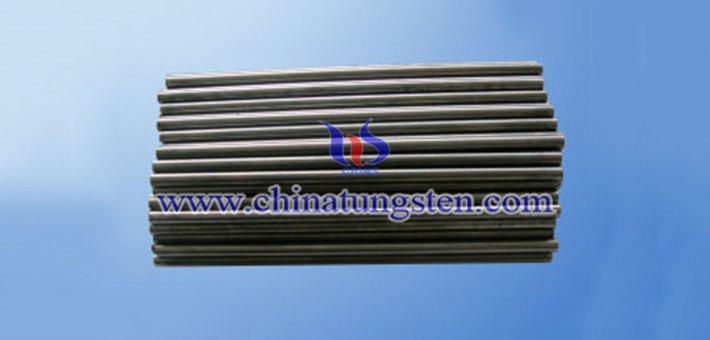

HPM1750 tungsten alloy rod has very high melting point and have a density twice that of steel and are more than 50% heavier than lead. Due to their high density, it offers greater radiation shielding than lead and is non-toxic. It is electrically and thermal conductive and offer good corrosion resistance. It also has a low coefficient of expansion and has a high modulus of elasticity.
The properties of HPM1750 tungsten alloy rod are:
Tungsten content: 92.5%
Density: 17.5±0.2g/cm3
Hardness：≤325 HV10
Tensile Strength (typical value): 840MPa
Minimal Yield Strength (0.2% offset): 520MPa
Elongation (typical value): 14%
Young’s Modulus (average value): 340MPa
Median Coefficient of Thermal Expansion 20~100℃：5.5μm/(m?K)
Median Coefficient of Thermal Expansion 20~300℃：5.7μm/(m?K)
Median Coefficient of Thermal Expansion 20~450℃：5.8μm/(m?K)
Thermal Conductivity: ≥75 W/(m?K)
Electrical Conductivity (average value):12% IACS and 6.9 MS/m
Specific Electrical Resistance(average value): 0.15μΩ?m
Permeability: ＞1.05μ
