In the vast starry sky of modern industry, tungsten-nickel-iron alloy shines like a brilliant star, occupying a pivotal position in numerous critical fields due to its excellent mechanical, chemical, and thermal properties. From precision components in aerospace to core equipment in defense and military applications, from high-end medical instruments to tools in industrial manufacturing, its presence is ubiquitous. This alloy is not a mere amalgamation of individual elements but a sophisticated material born from the synergistic interplay of tungsten, nickel, and iron. It is the critical roles played by these three elements and their remarkable interactions that endow tungsten-nickel-iron alloy with its exceptional comprehensive performance. Today, let us delve into the vital roles of tungsten, nickel, and iron in this alloy, unlocking the secrets behind its material marvel.
1. Tungsten: The Robust Foundation of Tungsten-Nickel-Iron Alloy
Tungsten, as the primary matrix of tungsten-nickel-iron alloy, is the core element that forms the alloy’s robust framework, laying a solid foundation for its properties.
Firstly, tungsten can form a continuous skeletal structure. During the alloy’s preparation, tungsten particles interconnect to create a three-dimensional network, much like the steel framework of a building, providing strong support and ensuring excellent overall stability for the alloy.
Secondly, tungsten imparts high density and a high melting point to the alloy. With a density of 19.35 g/cm3, tungsten significantly increases the alloy’s density. Generally, as the tungsten content increases, so does the alloy’s density. For instance, at a tungsten content of 90%, the alloy’s density is approximately 17.1 g/cm3; at 93%, it rises to about 17.60 g/cm3. This high-density characteristic makes tungsten-nickel-iron alloy ideal for applications requiring counterweights or balance. Additionally, tungsten’s high melting point (3422°C) endows the alloy with exceptional high-temperature resistance, allowing it to maintain structural stability in extreme heat without deforming or melting.
Moreover, tungsten enhances the alloy’s thermal shock resistance. In environments with significant temperature fluctuations, materials are prone to cracking or fracturing due to uneven thermal expansion and contraction. The presence of high-melting-point tungsten enables the alloy to better withstand such temperature variations, extending its lifespan in complex thermal conditions.
2. Nickel: The Key Link in Optimizing Tungsten-Nickel-Iron Alloy Performance
Nickel plays a pivotal role as the key link in optimizing the performance of tungsten-nickel-iron alloy. As the primary component of the binding phase, it interacts with other elements to enhance the alloy’s overall properties.
Nickel forms a γ-phase with iron, which significantly improves the alloy’s toughness and machinability. While the tungsten skeleton is inherently strong, it is also brittle. The γ-phase formed by nickel and iron acts like an “adhesive,” filling the gaps between tungsten particles, effectively mitigating stress concentration. This reduces the likelihood of fracture under external impact, enhancing the alloy’s toughness. Additionally, this structure makes the alloy easier to machine through processes like cutting and forging, broadening its application scope.
Furthermore, nickel inhibits abnormal grain growth in tungsten particles. During the alloy’s sintering process, without nickel, tungsten particles may grow excessively under high temperatures, leading to uneven microstructure and reduced performance. Nickel’s inclusion effectively controls the growth rate and size of tungsten particles, resulting in a more uniform alloy structure and improved stability.
3. Iron: The Balancer of Strength and Cost in Tungsten-Nickel-Iron Alloy
Iron serves as the balancer of strength and cost in tungsten-nickel-iron alloy, working in synergy with nickel to contribute to both performance and economic viability.
Iron collaborates with nickel to enhance the alloy’s strength. The γ-phase formed by iron and nickel further strengthens the phase structure’s stability and mechanical properties, enabling the alloy to maintain structural integrity under significant loads. This synergistic reinforcement ensures that the alloy combines sufficient toughness with higher strength, meeting the demands of various operational conditions.
Additionally, iron helps reduce the alloy’s production costs. Compared to nickel, iron is a relatively inexpensive metal. By substituting a portion of nickel with iron while maintaining performance, the alloy’s production costs are lowered, making tungsten-nickel-iron alloy more competitive in the market. However, the iron content must be carefully controlled, as excessive iron can increase the alloy’s brittleness, adversely affecting its overall performance.
4. Performance and Applications of Tungsten-Nickel-Iron Alloy
The excellence of tungsten-nickel-iron alloy stems from the synergistic effects of tungsten, nickel, and iron, which result in outstanding comprehensive properties, making it a standout in multiple fields.

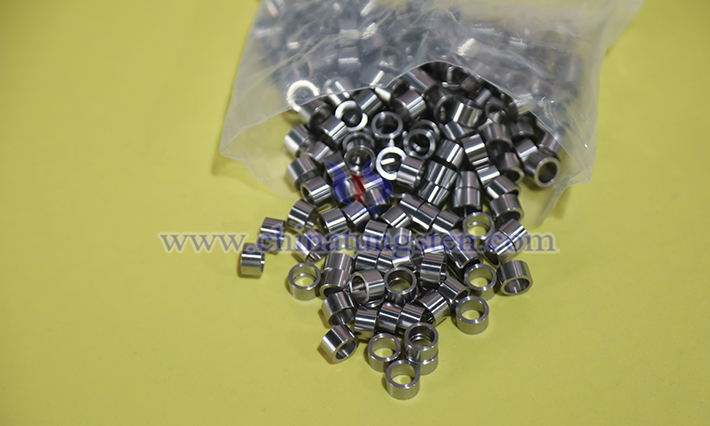

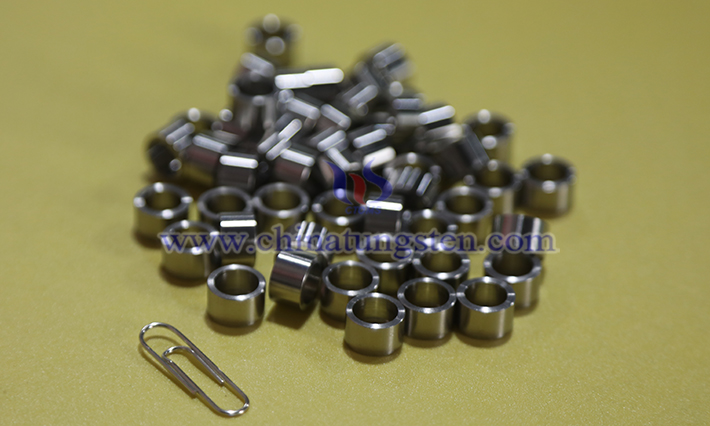

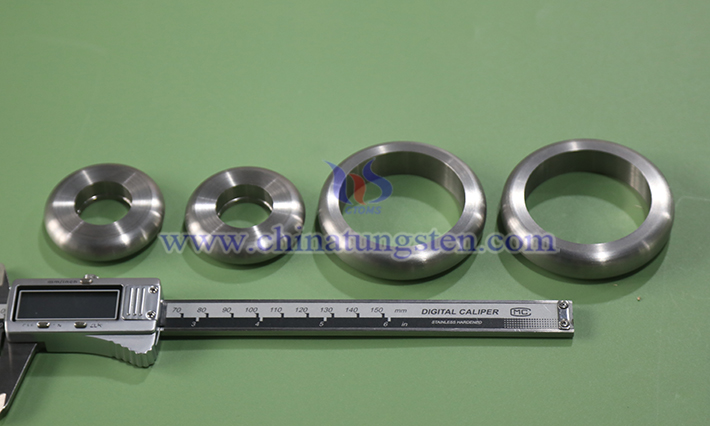

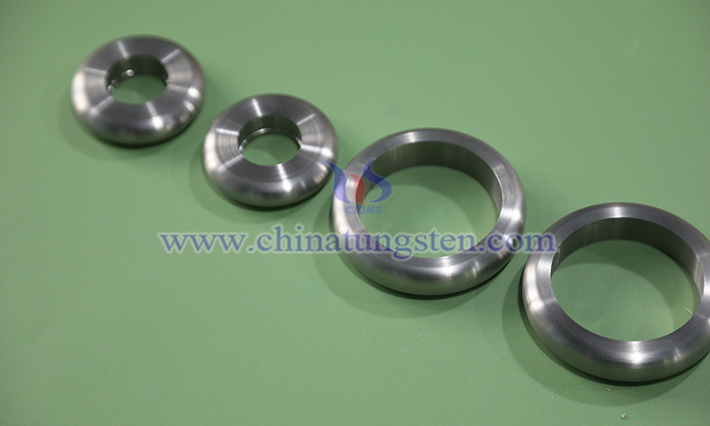

Its high-density property is one of its most prominent features. In aerospace, spacecraft counterweights require strict control over weight and volume. Tungsten-nickel-iron alloy’s high density allows it to achieve the necessary counterweight effect in a smaller volume, ensuring balance and stability during flight.
The combination of high strength and toughness enables the alloy to perform well in scenarios involving impact and heavy loads. In the defense and military sector, it is commonly used in armor-piercing projectile cores. These cores must withstand immense impact and friction forces upon hitting a target. The alloy’s high strength prevents the core from fracturing during high-speed flight and impact, while its toughness ensures effective energy transfer for superior penetration. Additionally, in precision machinery transmission components, the alloy’s properties enable long-term stable performance.
Its excellent thermal and electrical conductivity makes tungsten-nickel-iron alloy suitable for electronic applications. In high-end electronic devices, materials with good heat dissipation are essential to ensure normal operation. The alloy’s thermal conductivity efficiently dissipates heat generated by electronic components, preventing performance degradation due to overheating. Its moderate electrical conductivity also meets the needs of certain conductive components.
The alloy’s superior corrosion and oxidation resistance further expands its application environments. In industrial settings with corrosive media, tungsten-nickel-iron alloy maintains performance stability, extending equipment lifespan.
