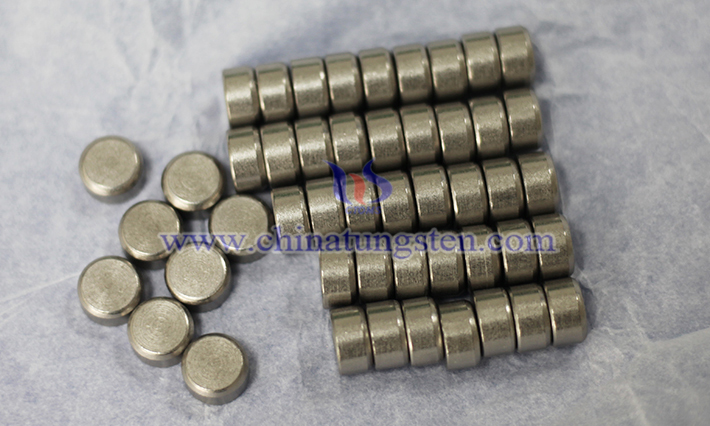

Barium tungsten electrodes play a crucial role in high-energy particle accelerators, especially electron accelerators and free electron lasers, mainly as the core component of high-performance electron sources - electron gun cathodes. Its application value is mainly reflected in the following aspects:
1. Generate High Brightness and High Current Electron Beams
High heat electron emission capability: Barium tungsten electrodes can provide very high electron emission current density at relatively low operating temperatures. This is crucial for accelerators that require extremely high peak or average currents, such as free electron lasers and energy recovery linear accelerators.
Low emissivity: High performance accelerators pursue low emissivity (which characterizes the degree of "cold" in the transverse phase space of the electron beam), which is crucial for obtaining high brightness beam and high-quality beam transmission. A well-designed barium tungsten cathode can generate electron beams with low thermal emissivity.
2. Suitable for High Gradient Electron Guns
Modern high-energy accelerators, especially X-ray free electron lasers, use high gradient RF electron guns to rapidly accelerate electrons and suppress beam quality degradation caused by space charge effects. Barium tungsten cathodes can withstand such high electric field environments, and their emission performance is stable or even improved at high field strengths.
3. Long Lifespan and Reliability
Although not as long as some photocathodes, in the category of hot cathodes, impregnated barium tungsten cathodes are known for their relatively long service life and good reliability. This is very important for accelerator facilities that require long-term stable operation, such as synchrotron radiation sources and free electron laser user devices. In addition, barium tungsten electrodes have relatively better tolerance to poor vacuum environments than some other high-performance cathodes, such as metal single crystal cathodes.
4. Replace Traditional Cathodes
Compared to earlier oxide cathodes (with low emission current density, short lifespan, and susceptibility to poisoning) and pure tungsten cathodes (requiring extremely high operating temperatures and low emission efficiency), barium tungsten electrodes have achieved significant improvements in performance, lifespan, and efficiency.
Compared to photocathodes that require expensive laser drivers (although capable of producing ultra-low emissivity beams), barium tungsten cathode systems are relatively simple and cost-effective, and have advantages in applications that do not require extreme low emissivity but require high current intensity or long pulse/continuous wave operation.
5. Widely Applicable Scenarios
Free electron laser, energy recovery linear accelerator, synchrotron radiation source injector, industrial/medical linear accelerator
