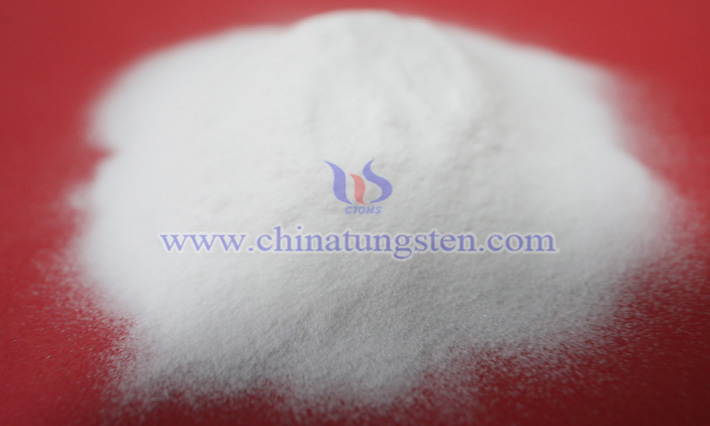

Ammonium metatungstate (AMT), an important inorganic compound, holds a pivotal position in modern industry due to its unique physicochemical properties. In material preparation, AMT serves as a critical raw material for producing high-performance tungsten-based materials. Through processes like thermal decomposition, AMT can yield uniform, high-purity tungsten powder, which is essential for manufacturing tungsten-based alloys and tungsten carbide powder.
In the field of chemical catalysis, AMT’s distinctive crystal structure makes it an excellent catalyst or catalyst support. In the hydrorefining process of the petrochemical industry, AMT-based catalysts effectively remove impurities such as sulfur and nitrogen from oil products. As a catalyst in organic synthesis reactions, AMT significantly enhances reaction efficiency. Thus, a deep understanding of AMT’s crystal structure is key to unlocking its performance potential and expanding its applications.
I. Fundamentals of Ammonium Metatungstate Crystal Structure
1. Unique Keggin-Type Structure
The core of the ammonium metatungstate crystal structure is the Keggin-type polyanion [H?W??O??]??, formed by 12 WO? octahedra linked through shared oxygen atoms, exhibiting an approximately spherical tetrahedral symmetry typical of the α-Keggin configuration.
Tungsten Atom Distribution: The 12 tungsten atoms are positioned at the vertices of the cluster, each coordinated with 6 oxygen atoms to form octahedral units.
Oxygen Atom Classification: Oxygen atoms play diverse roles, categorized into four types: terminal oxygen (W=O) forms double bonds with tungsten, providing structural stability; bridging oxygen (W-O-W) includes edge-sharing and corner-sharing types, connecting different WO? octahedra; central oxygen stabilizes the internal cluster; and protonated oxygen, bonded with two hydrogen atoms, contributes to the unique [H?W??O??]?? feature.
Charge Balance: The Keggin anion carries a 6- charge, balanced by six ammonium ions (NH??), ensuring overall molecular neutrality. Ammonium ions interact with the Keggin anion via electrostatic forces and hydrogen bonds, distributing around the anion to fill lattice voids and enhance crystal rigidity.
2. Crystal System and Space Group
From a crystallographic perspective, ammonium metatungstate belongs to the monoclinic crystal system, with the common space group P2?/c. Typically containing 3-4 crystal water molecules, the unit cell parameters vary slightly depending on the number of water molecules. These water molecules exist as coordination or lattice water, forming hydrogen bonds with Keggin anions and ammonium ions, filling lattice gaps and further stabilizing the structure. Upon heating, the crystal water is gradually lost, causing slight lattice contraction, though the Keggin framework remains intact.
3. Relationship Between Crystal Structure and Properties
The Keggin structure endows ammonium metatungstate with excellent chemical and thermal stability, preventing decomposition at room temperature, making it an ideal precursor for high-purity tungsten powder and catalysts. Its regular pore structure also serves as an active site carrier, playing a significant role in catalyst preparation.
II. Detection Methods for Ammonium Metatungstate Crystal Structure
1. X-Ray Diffraction Analysis
X-ray diffraction (XRD) is the primary method for probing the crystal structure of ammonium metatungstate, based on the coherent scattering of X-rays by crystals. When a monochromatic X-ray beam of wavelength λ irradiates the crystal, the regularly arranged atoms (or ions) act as scattering centers. Due to the similarity in scale between atomic distances and X-ray wavelength, scattered X-rays interfere. At angles satisfying Bragg’s equation (2dsinθ = nλ, where d is the interplanar spacing, θ is the angle between the incident ray and diffraction line, and n is the diffraction order), the scattered waves reinforce, producing strong diffraction peaks, while canceling out elsewhere, reducing intensity.
2. Infrared Spectroscopy Analysis
Infrared spectroscopy involves analyzing and identifying molecular structures by exposing them to infrared rays of varying wavelengths. Specific wavelengths are absorbed, forming an infrared absorption spectrum. This spectrum arises from molecular vibrations and rotations, where atoms move relative to each other near equilibrium positions. In polyatomic molecules, various vibration patterns emerge. When atoms vibrate harmonically at the same frequency and phase, it’s called normal mode vibration. The energy of these vibrations corresponds to infrared photon energy, enabling emission or absorption spectra as vibrational states change. Molecular vibrational and rotational energy is quantized, often accompanied by rotational transitions, resulting in band-like spectra.
3. Raman Spectroscopy Analysis
Raman spectroscopy, a scattering-based technique, leverages the Raman effect to analyze scattered light of frequencies different from the incident light, providing insights into molecular vibrations and rotations. When monochromatic light illuminates a sample, most light undergoes elastic scattering (same frequency as incident light), while a small portion undergoes inelastic scattering (different frequency). For vibration modes less evident in infrared spectra, Raman spectroscopy offers clearer signals, accurately determining atomic connectivity and coordination environments.
4. Nuclear Magnetic Resonance Spectroscopy
Nuclear magnetic resonance (NMR) spectroscopy studies the absorption of radiofrequency radiation by atomic nuclei, serving as a powerful tool for qualitative analysis of organic and inorganic compounds, and occasionally quantitative analysis. Based on the spin properties of nuclei, when placed in a strong magnetic field, nuclei with non-zero spin quantum numbers split into distinct energy levels. Applying specific radiofrequency pulses induces transitions between these levels, resulting in detectable energy absorption or emission signals.
5. Exploration of Other Potential Detection Techniques
Beyond the above methods, scanning electron microscopy (SEM) and transmission electron microscopy (TEM) offer unique value in studying ammonium metatungstate crystal structures. SEM observes surface morphology, providing data on crystal size, shape, and roughness, and high-resolution imaging reveals crystal faces, edges, and potential surface defects, aiding research on growth habits and morphology evolution. However, SEM is limited to surface analysis. TEM enables high-resolution imaging of internal microstructures, revealing atomic arrangements, lattice defects, and layered structures.
