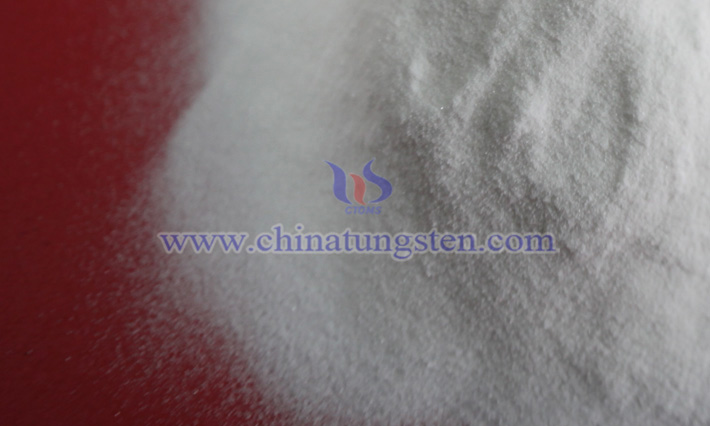

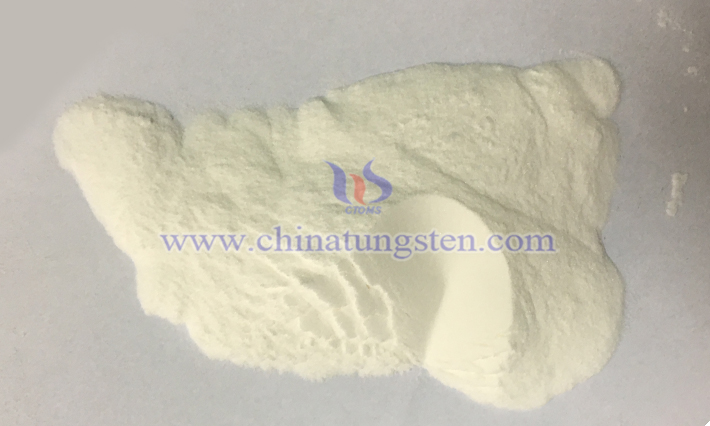

Ammonium metatungstate (AMT) is a compound formed by the combination of ammonium cations and metatungstate anions, typically appearing as a white crystalline powder with good water solubility and chemical stability. These properties lay a solid foundation for its applications in catalysts, electronics, ceramics, and other fields. Given its wide-ranging uses, research into AMT production methods is of great importance, as it directly impacts product quality, performance, production costs, and efficiency.

I. Neutralization Method: A Simple and Efficient Conventional Choice

Among the various production processes for AMT, the neutralization method stands out due to its relatively simple process and low equipment requirements, making it one of the most widely used methods in industrial production.

Process of Neutralization Method: First, a specific amount of tungstic acid is mixed with ammonia water, with ammonia added slowly under stirring to ensure thorough contact and improve reaction efficiency. Next, the reaction control phase begins, avoiding excessive temperature that could cause ammonia volatilization or low temperatures that slow the reaction, while regulating ammonia concentration and addition rate to prevent violent reactions or localized over-reaction affecting product quality. After the reaction, a solution containing AMT is obtained, which is then evaporated and concentrated, cooled for crystallization, and finally filtered and dried to yield the AMT product.

Advantages: The method is simple, requires minimal equipment, offers a stable production process, is easy to control, and suits large-scale production. Disadvantages: It demands high raw material purity and strict reaction conditions; minor fluctuations in factors like temperature or pH can significantly impact product purity and yield.

II. Ion Exchange Method: The Pursuit of Ultimate Purity

Ion exchange involves the swapping of ions between a solution and an ion exchange resin, using the resin's ions to exchange with those in a dilute solution to extract or remove specific ions.

Process of Ion Exchange Method: First, resin pretreatment is conducted by soaking the resin in hydrochloric acid to remove metal ion impurities, followed by neutralization with sodium hydroxide to adjust the pH, activating the resin's functional groups through acid-base alternation for optimal exchange. The pretreated resin is then packed into an ion exchange column, and a tungsten-containing solution is passed through at a suitable flow rate. Tungstate ions exchange with chloride ions on the resin and are adsorbed, with strict control over flow rate (to avoid incomplete exchange), temperature (within the ambient range), and concentration (to prevent premature resin saturation). Once the resin is saturated, ammonia water or a mixture of ammonium chloride and ammonia is used as an eluent, where ammonium ions exchange with tungstate ions on the resin, releasing tungstate into the solution as ammonium tungstate. Eluent concentration, flow rate, and time must be precisely controlled for effective elution. Finally, the ammonium tungstate solution is concentrated and crystallized by evaporating most of the water, cooled to precipitate AMT, filtered to separate crystals from the mother liquor, washed to remove surface impurities, and dried to obtain high-purity AMT.

Advantages: Exceptional impurity removal capability, producing products suitable for high-end applications; strong compatibility with tungsten-containing solutions of varying concentrations and compositions, offering wide applicability; resin reusability reduces waste, making the process relatively clean and environmentally friendly. Disadvantages: High initial investment in ion exchange resins and equipment; limited resin adsorption capacity requires periodic regeneration, adding complexity; rapid saturation with high-concentration tungsten solutions can negatively affect efficiency.

III. Solvent Extraction Method: Separation Wisdom Based on Solubility Differences

The core principle of solvent extraction relies on the differing solubilities of substances between aqueous and organic phases, akin to a carefully orchestrated "molecular migration journey." When a tungsten-containing solution is mixed with a specific organic solvent, it opens a gateway to different solubility realms. Due to significant differences in solubility between tungstate ions and impurity ions in the organic solvent, tungstate ions, with their stronger affinity, transfer from the aqueous to the organic phase, while most impurities remain in the aqueous phase, achieving initial separation.

Process of Solvent Extraction Method: First, extraction is performed using organic phosphorus (e.g., di(2-ethylhexyl) phosphoric acid) or amine extractants, mixed with the tungsten solution at a 1:1 volume ratio (e.g., ammonium tungstate solution with di(2-ethylhexyl) phosphoric acid and kerosene as the organic phase), stirred at room temperature. The pH is controlled between 2-4 to efficiently transfer tungstate ions into the organic phase, avoiding high temperatures that cause solvent volatilization or low temperatures that reduce extraction efficiency. After extraction, the mixture is allowed to settle, leveraging the immiscibility and density difference between the organic (upper) and aqueous (lower) phases for clear separation of the tungsten-rich organic phase from the impurity-containing aqueous phase. Next, back-extraction is conducted by adding ammonia water to the tungsten-loaded organic phase, stirred at room temperature to react tungstate ions with ammonia, returning them to the aqueous phase as ammonium tungstate solution. Finally, the solution is concentrated and crystallized by evaporating most of the water, cooled to precipitate AMT, filtered to separate crystals from the mother liquor, washed to remove surface impurities, and dried to yield high-purity AMT.

Environmental Considerations: The recovery and treatment of organic solvents is a complex and critical issue. If not effectively recycled, it leads to resource waste and environmental pollution, potentially contaminating soil and water, disrupting ecological balance. Thus, companies using solvent extraction for AMT production must prioritize safe solvent use and environmental management.

IV. Thermal Decomposition Method: Transformation at High Temperatures

The thermal decomposition method leverages the thermal decomposition characteristics of ammonium paratungstate (APT) under high temperatures to achieve its transformation into AMT. APT, an important tungsten-containing compound, maintains a relatively stable chemical structure at room temperature. However, when heated, it undergoes a series of complex physical and chemical changes. As the temperature rises, the chemical bonds within APT molecules become active, with some ammonium ions breaking free and escaping as ammonia gas, while crystal water gradually evaporates. During this process, the APT crystal structure breaks down, altering atomic arrangements, ultimately converting into AMT.

Particle Size Distribution Perspective: AMT produced by thermal decomposition exhibits a relatively uniform particle size distribution. This uniformity ensures stable performance during use. In the ceramics industry, where AMT is added as an additive to ceramic raw materials, uneven particle distribution can lead to inconsistent local density or cracking during sintering. AMT from thermal decomposition, with its uniform particle size, effectively avoids these issues, enhancing the quality and yield of ceramic products.
