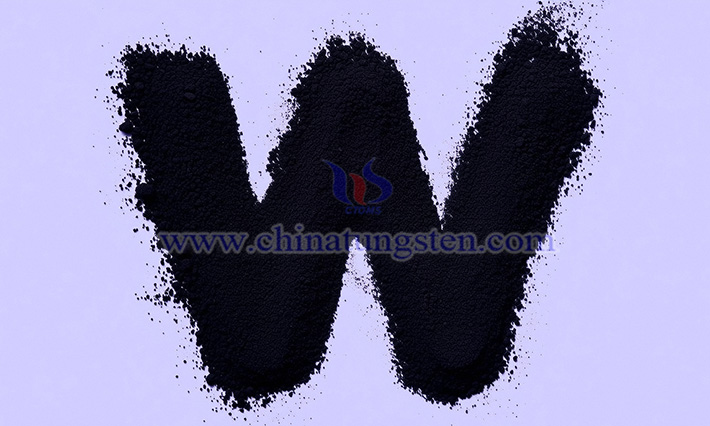

Chemical Vapor Deposition (CVD) is a critical material preparation technique that plays a pivotal role in the synthesis of tungsten disulfide film. This method enables precise control over the growth process, yielding high-quality WS? materials with specific structures and properties. It exhibits vast application potential across numerous fields, such as high-performance electronic devices, efficient catalysts, and advanced lubricating materials.
I. Principle of Chemical Vapor Deposition Method

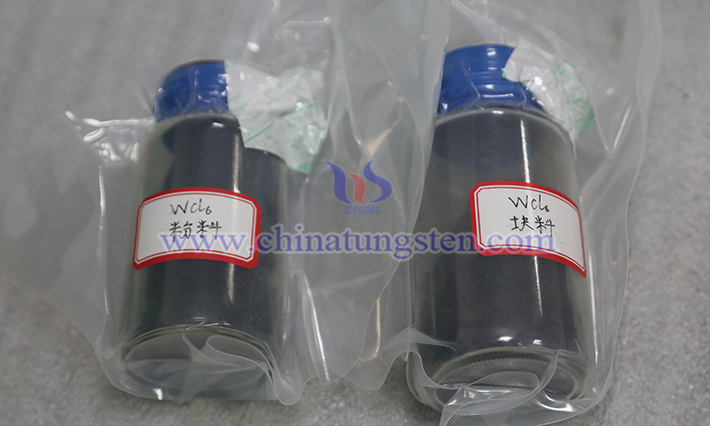

The CVD method for preparing tungsten disulfide relies on the chemical reaction between gaseous tungsten and sulfur sources under specific conditions, resulting in the deposition of WS? films or coatings on a substrate surface. Typically, tungsten hexachloride (WCl?) is used as the tungsten source, and hydrogen sulfide (H?S) as the sulfur source. In a high-temperature environment, WCl? and H?S gas molecules are introduced into the reaction chamber. Near the substrate surface, they undergo a series of complex chemical reactions. Initially, WCl? decomposes to produce tungsten atoms (W), while H?S breaks down to release sulfur atoms (S). Subsequently, the W and S atoms combine to form WS? molecules, which deposit and grow on the substrate surface, gradually forming a tungsten disulfide film. The driving force for these chemical reactions is the energy provided by the high-temperature environment, which facilitates the breaking and recombination of chemical bonds in the gas molecules.
II. Steps of Chemical Vapor Deposition Method
Reaction Equipment Preparation: Specialized CVD equipment is used, consisting of a reaction chamber, gas delivery system, heating unit, and vacuum system. The reaction chamber must be well-sealed to maintain a stable reaction environment. The gas delivery system is rigorously inspected to ensure precise control and stable delivery of the tungsten source, sulfur source, and carrier gas (e.g., argon, Ar). The heating unit should allow accurate temperature regulation, typically reaching high ranges (e.g., 800-1200°C) to meet reaction requirements. The vacuum system evacuates the chamber to an appropriate vacuum level, eliminating interference from air and other impurities.
Substrate Selection and Preparation: Suitable substrate materials are chosen based on application needs, with common options including silicon wafers, sapphire, and mica. Prior to use, substrates undergo thorough cleaning and preprocessing to remove surface contaminants such as oil, impurities, and oxides. For instance, silicon wafers are typically cleaned sequentially with acetone and ethanol via ultrasonication to remove organic residues, treated with hydrofluoric acid to eliminate the oxide layer, and then rinsed with deionized water and dried to ensure a clean, smooth surface conducive to uniform WS? deposition.
Introduction of Reactant Gases and Reaction: The preprocessed substrate is placed at a designated position in the reaction chamber, which is then sealed, and the vacuum system is activated to achieve the predetermined vacuum level. Subsequently, WCl?, H?S, and Ar gases are introduced into the chamber at a set flow ratio via the gas delivery system. Ar, acting as a carrier gas, ensures uniform distribution of WCl? and H?S throughout the chamber. The heating unit is turned on to rapidly elevate the chamber temperature to the designated reaction range, typically around 900-1000°C. At this high temperature, WCl? and H?S react chemically, and the resulting WS? deposits and grows on the substrate surface. The reaction duration must be precisely controlled—too short, and the film may be too thin; too long, and film quality may degrade. Reaction times typically range from tens of minutes to several hours.
Product Cooling and Removal: After the reaction, the heating unit is turned off, allowing the chamber to cool naturally to room temperature. During cooling, Ar gas flow is maintained to protect the deposited WS? film from oxidation. Once cooled, the chamber is opened, and the substrate with the WS? film is carefully removed. The resulting product may contain unreacted gas residues or impurities, necessitating further cleaning or post-processing as needed, such as using organic solvents to remove potential surface contaminants.
III. Factors Influencing Chemical Vapor Deposition
Temperature: Reaction temperature significantly affects the growth rate and crystal structure of WS?. If too low, the reaction rate slows or may not occur; if too high, crystal quality may degrade, leading to defects or uneven growth. The optimal temperature varies depending on the reaction system and substrate material, requiring experimental optimization.
Gas Flow Ratio: The flow ratio of WCl? to H?S directly influences the stoichiometric ratio of tungsten to sulfur in the product and the film’s growth quality. An improper ratio may result in defects such as sulfur vacancies or excess tungsten, affecting WS? performance. The ratio must be finely tuned based on reaction mechanisms and experimental outcomes to achieve the desired product.
Reaction Pressure: The pressure inside the reaction chamber impacts gas molecule diffusion and reaction kinetics. Lower pressure enhances diffusion, promoting uniform reactions, but excessively low pressure may slow the reaction rate. Higher pressure can affect gas molecule reactivity and the deposition process, necessitating an experimentally determined optimal pressure range.
Substrate Properties: The substrate’s crystal structure, surface roughness, and chemical properties influence WS? nucleation and growth. Substrates with high lattice matching facilitate epitaxial growth of WS? films, yielding high-quality crystals. Smooth surfaces promote uniform deposition, while the substrate’s chemical reactivity may affect the reaction process and the bonding strength between the film and substrate.
IV. Advantages and Disadvantages of Chemical Vapor Deposition
Advantages:
Enables precise control over film thickness, composition, and structure, producing high-quality, large-area, and uniform WS? films suitable for demanding applications like electronic devices.
Offers process flexibility, allowing deposition on substrates of various shapes and materials to meet diverse application needs.
Allows effective control over WS? film orientation and crystal quality by adjusting reaction parameters, facilitating the development of materials with specific properties.
Disadvantages:
Requires complex and costly equipment, including specialized reaction chambers, gas delivery, and vacuum systems, increasing experimental and production costs.
Involves stringent reaction conditions, such as high temperatures and precise control of multiple gas flows and pressures, demanding high technical expertise from operators.
Utilizes potentially toxic and corrosive gases (e.g., H?S), posing environmental and safety risks that necessitate rigorous protective measures and exhaust treatment systems.
