Chinatungsten Onine's Tungsten Heavy Alloy Products
Tungsten Heavy Alloy Products
Symbol: W + Ni/Fe, W + Ni/Cu
Powder Metallurgy Technology: Max powder --> pressing --> sintering --> tooling
Tungsten heavy alloy have excellent radiation resistance, electric and thermal conductivities ( 0.2--0.3CGS ) and corrosion resistance with high density ( 16.4 --18.5 g/cm3 ) and good mechanical strength. It has small coefficient of expansion and large elastic modulus. Tungsten products are extensively used in military equipment, nuclear, mechanical manufacturing, aircraft components, medical shields and sports equipment.
Chinatungsten is supplying tungsten alloy products such as W-Ni-Fe and W-Ni-Cu. The products are vary in shape from rod, ball, ring block strip to abnormal pieces according to the user's request (see table 3) . All of our tungsten alloy products are up to the grade of AMS-T-21014 (see table 1,2). We can provide other types and sizes tungsten alloy products with varying contents and properties.
Table 1. Properties of tungsten alloy ( AMS-T-21014 )
|
Class |
Nominal tungsten (weight percent) |
Density (g/cc) |
Hardness ( HRC )(maximum) |
|
1 |
90 |
16.85 - 17.25 |
32 |
|
2 |
92.5 |
17.15 – 17.85 |
33 |
|
3 |
95 |
17.75 – 18.35 |
34 |
|
4 |
97 |
18.25 – 18.85 |
35 |
Table 2. Mechanical Properties – Minimum Value ( AMS-T-21014 )
|
Class |
Ultimate tensile strength ( ksi) |
Yield strength at 0.2 percent offset (ksi) |
Elongation( percent ) |
|
1 |
110 |
75 |
5 |
|
2 |
110 |
75 |
5 |
|
3 |
105 |
75 |
3 |
|
4 |
100 |
75 |
2 |

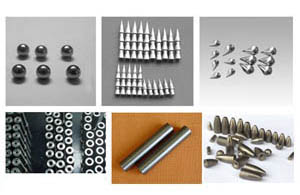

Table 3. Main products
|
Tungsten Alloy Rods |
|
Material: W + Ni/Fe. W + Ni/Cu |
|
Size (mm)： Dia.(3-350)x L (20-650) mm |
|
Supply state: Sintering and ground |
|
|
|
Tungsten Alloy Plates |
|
Material: 95%W + Ni/Fe |
|
Maximum Size: Length 400 x Width 300 mm |
|
|
|
Tungsten Alloy Screws |
|
Material: 90-95%W alloy |
|
According to the user's drawing. |
|
|
|
Radiation Shields |
|
Material: 90-95%W alloy |
|
Weight： 100g - 200kg/pc |
|
According to the user's drawing |
|
|
|
Tungsten alloy Sphere |
|
Material: 92-95%W + Ni/Fe |
|
Size: Dia.2.5 - 12 mm |
|
|
|

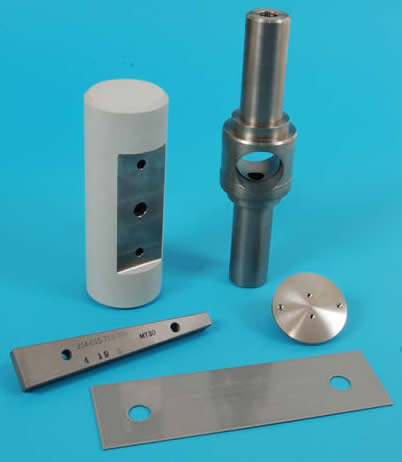

Tungsten Alloy Parts |
|
Material: Tungsten heavy alloy |
|
Size: According to the user's drawing |
|
 | For more details, you may find all of the products of Chinatungsten at www.tungsten-alloy.com.
